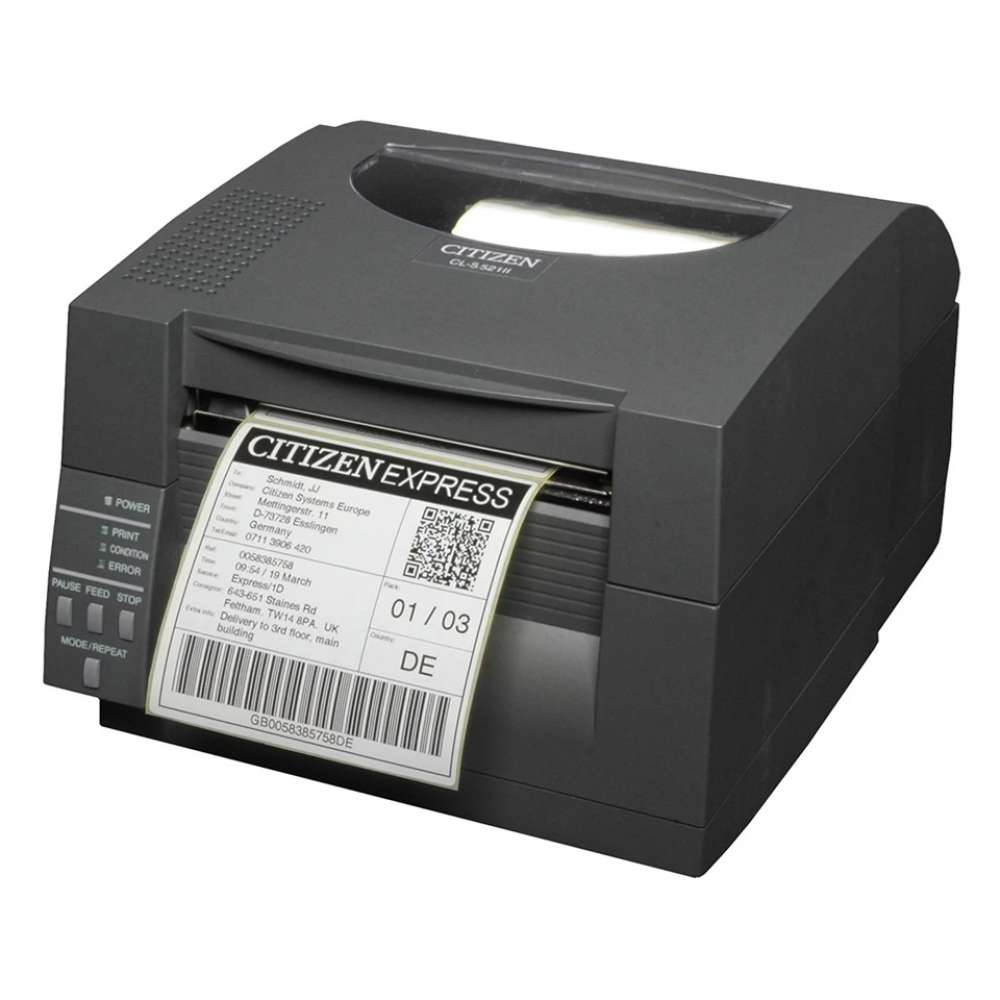

Citizen CLS-531II 4" 300 dpi Direct Thermal Label Printer with USB & Serial Interface
Citizen CLS-531II 4" 300 dpi Direct Thermal Label Printer with USB & Serial Interface
Citizen CLS-531 300dpi print head, DirectThermal Label printer, Approx 150mm/sec, Dual Emulation Datamax/Zebra, USB + RS232 interface, Black
Main Features
Durable Direct Thermal Desktop Label Printer
Metal print mechanism
Citizen’s unique Hi-Lift™ design
An adjustable media sensor efficiently handles unique label configurations
Auto sensing between ZEBRA® ZPL® & Datamax® DPL™ emulation standard
16 MB of DRAM and 4 MB of flash memory
Complete connectivity with serial and USB standard.
Optional internal Parallel or Ethernet interfaces are available.
Internal power supply
Label-making software included
Optional peeler and cutter modules
This product has a 24 month warranty (12 months on print head)
Printing Method: Direct Thermal
Printing Width: Max. 104 mm
Printing Length: Max. 812.8 mm
Dot Pitch: 12 dots / mm (300 dpi)
Printing Speed (Max.): Max. 100 mm/s - 4 ips
Font
Datamax® emulation: Seven kinds of fixed pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer
Zebra® emulation: Five kinds of fixexd pitch font, OCR fonts (OCR-A, OCR-B) *3, Proportional fonts, True type™ rasterizer *4
*3: The OCR font may have a low recognition rate according to the reader.
*4. It is equipped with UFST™ and TrueType™ raterizer that are licensed from Agfa Corporation.
Paper feed method: Friction Feed
Media Type: Roll, fanfold
(Continuous media, die-cuts media, continuous tags, copntinuous tickets)
Media width: Min. 19.5 mm to Max. 118 mm
Paper Roll Diameter:
Max Ø 127 mm with 25.4 to 76 mm Core
Min. media core when using labels 50.8 mm
Media Thickness: Min. 0.0635 mm to Max. 0.254 mm
Auto Cutter: Optional quilotine Cutter
Indicators/Controls:
Emulation:
CITIZEN original language
Datamax® Programming language
Zebra® programming language
Auto detect
CPU: 32 Bit RISC CPU
Memory:
Flash ROM 4MB (User area: 1MB)
Datamax® emulation: SDRAM 16MB(User area: 1MB)
ZEBRA® emulation: SDRAM 16MB(User area: 4MB)
Sensors: Transparent sensor, Reflective sensor& Label peeling sensor (if optional Peeler is used)
Interfaces:
Standard with USB 1.1 (Full speed) & RS-232C (2400, 4800, 9600, 19200, 38400,57600,115200 bps) interface
Optional Ethernet or Paralllel IEEE1284 (compatible, Nibble, ECP mode) or Wireless Lan.
Driver available: Drivers by Seagull
Software Utilities: Bartender Ultralite
Power Supply:
Internal 220-240V 50/60Hz
ENERGY STAR® qualified printer
Power Consumption: Max. 1.2A
External Dimensions (WxDxH): 231W × 289D × 186H mm
Weight: 3.6 Kg approx.
Operating Environment:
Temperature: 0 to 40 °C
Humidity: 30 to 80% (non-condensing)
Storage Environment:
Temperature: -20 to 60 °C
Humidity: 5 to 85% (non-condensing)
EMC/Safety Standards: CE(EMC), GS Mark, FCC Class A, EMI, S-Mark, C-tick/RCM, CCC,UL, C-UL
