Cordless Barcode Scanners

Adesso NuScan 5200TR Waterproof 2D Wireless Barcode Scanner

Brand: Adesso | Model: AD5200TR

Adesso NuScan 5200TR Waterproof 2D Wireless Barcode Scanner with 90m range.

normally $399.95 $349inc.
In stock

Adesso NuScan 5200TR Waterproof 2D Wireless Barcode Scanner. Comes with charging cradle, drop protection, and superior scanning performance.

The Adesso NuScan 5200TR Waterproof 2D Wireless Barcode Scanner is compatible with a wide range of 1D and 2D barcode symbologies and is the 2.4GHz wireless version of the NuScan 5200TU. It has an approx range of 90 metre (line of sight). With the built-in USB receiver inside its cradle, the NuScan 5200TR is completely plug and play. NuScan 5200TR is compatible with major 2D barcodes such as PDF 417, QR Codes, Data Matrix, and micro QR Code. Built with waterproof and antimicrobial substances, the NuScan 5200TR can be cleaned periodically to provide good hygiene. Its 7 meter drop protection also adds to its ruggedness. With all these great features, the NuScan 5200TR is truly your ultimate barcode scanner.

This barcode scanner is compatible with both PC & Mac.

Main Features


The Nuscan 5200TR is made with antimicrobial material which prevents the growth of harmful bacteria and protects against the buildup germs.


IP67 Rated. Sealed with a silicone plastic material, this scanner is 100% waterproof and can be cleaned with soap and water or other liquids cleaners. Ranked as a IP67 Waterproof Standard, this device can withstand being submerged in water for up to 30 min up to a depth of 3 ft.

Drop Protection

With its rugged design and durable silicone plastic material, the Nuscan 5200TR is less likely to become damaged due to accidental drops from up to 20 feet.

2.4 GHz Wireless Technology

Connecting the Nuscan 5200TR to your device has never been easier. Simply plug in the usb cable attached to the cradle and your scanner is good to go. The cradle has a built in usb receiver that makes the scanner completely plug-n-play!

Charging Cradle with Built-In Receiver

This charging cradle allows for hands-free scans and charges the scanner at the same time. It's built-in usb receiver also makes the scanner completely Plug-n-Play!

2D & 1D Scanning Engine

Easily and instantly read 2-dimensional barcode symbologies such as the most common PDF 417, QR, Data Matrix and micro QR Code. 1D barcode symbologies are supported as well making the Nuscan 5200TR truly reliable.

Superior Scanning Performance

The 24 inches per second (IPS) motion tolerance and the innovative high pixels CMOS engine offer fast and accurate scanning results.

Long Range Barcode Scanning

The NuScan 5200TR is able to scan barcodes and transmit those barcode data to its charging cradle with built-in receiver from up to 300 feet away.

This product has a 12 month warranty.


Imager: 640 x 480 CMOS

Light Source: 650 nm visible red LED and White LED

Depth of Field: 0-12 inches (20mil EAN-13, PC 100%)

Scan Angle: Roll: 50 deg, Pitch: 45 deg, Yaw: 360 deg

Motion Tolerance: 24 inches per second (IPS)

Minimum Bar Width (1D): 5 mil/0.127 mm at PCS 90%, Code 39

Minimum Bar Width (2D): 10 mil/0.254 mm at PCS 80%, Data Matrix

Print Contrast: PCS 30% code 39 at 5mil

Indicators (LED): Green LED

Alert Operation: Programmable Beeper Tone

Input Voltage: 5VDC

Operating Current: 220 mA

Dimensions: 175(d) x 72(w) x 100(h)mm

Weight: 160 grams, excluding cable

Cable: 1.83m

Operating Temperature: -20C to 50C

Storage Temperature: -40C to 70C

Humidity: 5% to 95% (non-condensing)

Light Levels: Max 100,000 lux

Shock: Withstanding 7m freefall drops

Supported 1D Symbologies: UPC-A/E, EAN13/8, Code 128, GS1-128, Code 39(Plain and Full ASCII), Code 93, Code 11, Code 25(ITF/Industrial/Matrix/IATA Standard), Codabar, MSI/MSI Plessey, GS1 DataBar

Supported 2D Symbologies: DataMatrix QR Code Micro QR Code PDF417

System Requirements: Windows 2000 / XP / Vista / 7 / 8 / 10 / 11, USB port for Wireless Cradle

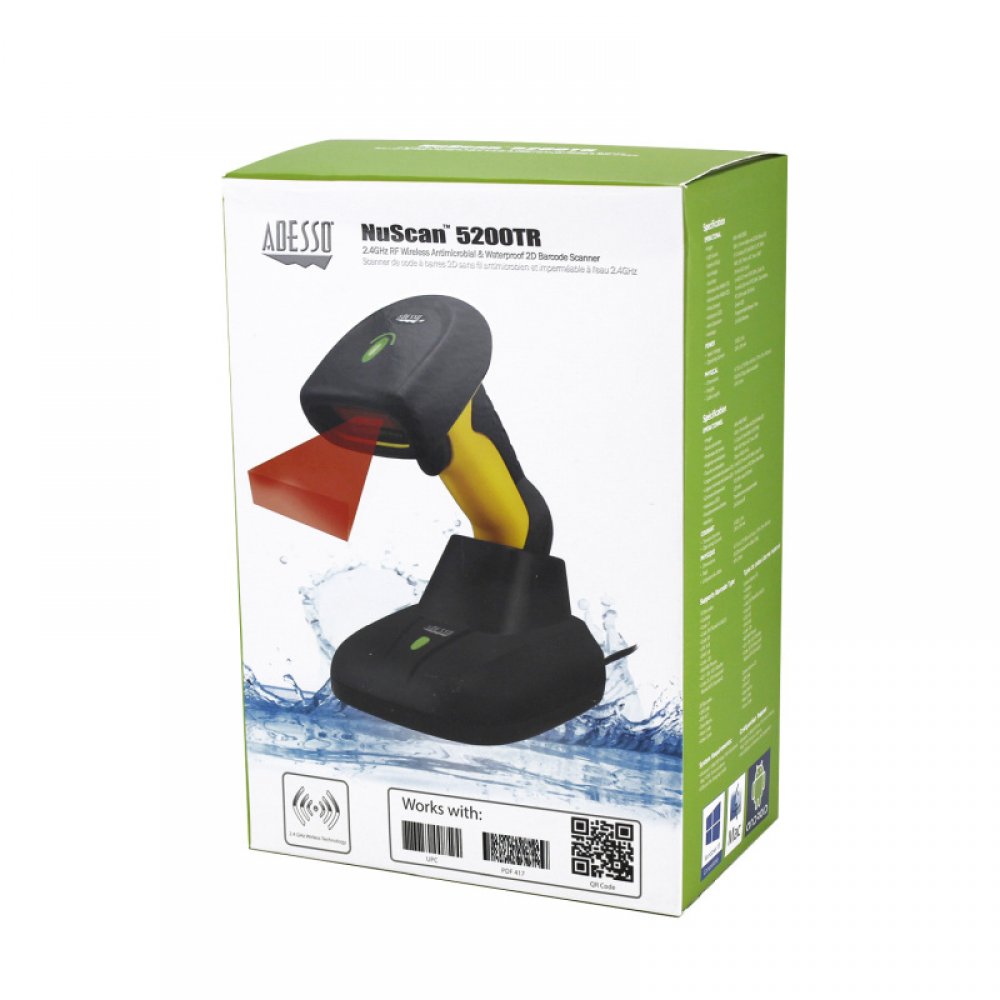

Includes: Adesso NuScan 5200TR 2.4GHz RF Wireless Antimicrobial and Waterproof 2D Barcode Scanner, Quick Start Guide

Colour: Black / Yellow
